400V IEC 61851 IP54 DC Electric Car Charging Stations

Name: 400V IEC 61851 IP54 DC Electric Car Charging Stations
Brand: ARK or OEM
Price: 1 USD

China 400V IEC 61851 IP54 DC Electric Car Charging Stations wholesale

Brand Name : ARK or OEM

Model Number : EF040CJ030

Certification : CE

Place of Origin : Jiangsu,China

MOQ : 1 unit

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 units per month

Delivery Time : 20-45 days

Packaging Details : wooden box

Rated output power : CCS: 40kW, CHAdeMO: 40kW

Charging standard : IEC 61851, CHAdeMO

Charging outlet : CHAdeMO JEVS G105, CCS Combo-2

Input voltage : 400Vac +/-10%, 3-phase

Charging type : Mode 3

Cellular : LTE modem, GPRS/3G/4G

Efficiency : > 94% at rated output

Contact Now

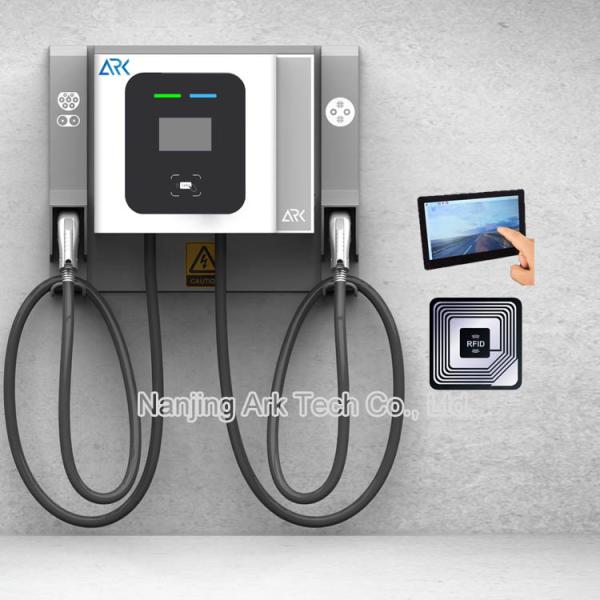

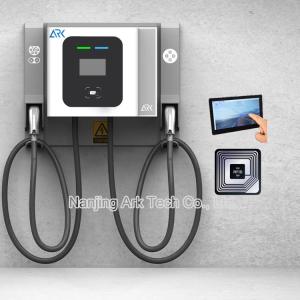

Ark 40KW DC fast charging station for electric vehicles compliant with CCS and CHAdeMO

Product Introduction

EF040 is a Fast Charging station able to charge all current and next generation vehicles with CCS and CHAdeMO.

EF040 charging station is a configurable single, dual outlet(default) 30 kW fast charging station, supporting the charging needs of each customer.

Application: highway rest stops, petrol stations, EV dealers, busy urban areas, etc.

Product Parameters

Technical specifications	EF040CJ030
System
Housing material	Metal enclosure
Dimension (H x W x D)	600 x 700 x 363mm, 1500 x 700 x 363mm (pedestal mount)
Installation method	Wall mount, pedestal mount (optional)
Cable routing	Bottom inlet, bottom outlet wiring
Weight	N.W.: 95kgs, 120kgs (pedestal mount)
Charging standard	IEC 61851, CHAdeMO
Charging outlet	CHAdeMO JEVS G105, CCS Combo-2
Outlet number	2
Input
Input voltage	400Vac +/-10%, 3-phase
Input frequency	50Hz/60Hz
Power factor	0.99
Output
Rated output power	CCS: 40kW, CHAdeMO: 40kW
Measuring accuracy	Level 0.5
Output voltage range	CCS: 150 – 1000V, CHAdeMO: 150 – 500V, DC constant rated output @ above 300V
Output current range	0 - 100A
Efficiency	> 94% at rated output
General
Charging type	Mode 4
User Interface	RFID, 7” touch screen, Emergency button
Ethernet	10/100 BaseTX (TCP-IP)
Cellular	LTE modem, GPRS/3G/4G
Communication	CAN, PLC, OCPP 1.6 JSON
Application place	Indoor/Outdoor
Working temperature	-30 °C – +55 °C
Working humidity	5% – 95% non-condensation
Altitude	< 2000m
Protection grade	IP54
Cooling	Fan cooling
Compliance	EN 61851-1:2010, EN 61851-1:2017, IEC 61851-21-2:2018, EN 61851-23:2014, EN 61851-24:2014

400V IEC 61851 IP54 DC Electric Car Charging Stations

Features

40 kW DC fast charger supporting multiple standards as CCS, CHAdeMO

Multiple outputs: DC power up to 30 kW

Reliable, robust, modular hardware

Simple, quick and easy installation

Daylight readable touch screen display

RFID authorization

Low operational noise

Customizable

Application

Retail and mall parking spaces

Fleet charging stations

Highway service areas

Workplaces

Residences, etc.

Company Introduction

Ark Tech is devoted to upgrade products, complete project solutions and after-sale service to ensure top ranks of our customer satisfaction in the market. We are committed to become the most professional EV charging equipment manufacturer in China and keep striving for it.

FAQ

Q: Do your charger support the OCPP function?

Yes, our charger support the OCPP 1.6, it can be connected to Internet via Ethernet, 3G/4G.

Q: How about the quality and warranty about the charger?

All of our chargers are CE certificated. We supply 12 months warranty for the charger, what'more, we supply whole life techinical support.

NOTE:

1- OEM supported.

2- Any requirement please contact us to talk about the details.

3- We will reply you for your inquiry in 24 hours.

4- If you have any questions about the charger, please contact us.

5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
