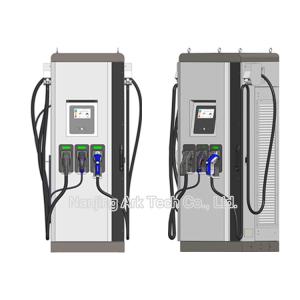

Waterproof 60KW To 120KW 400V Public Fast Charging Stations

Brand Name : ARK or OEM

Model Number : EF160CJ082

Certification : CE

Place of Origin : Jiangsu,China

MOQ : 1 unit

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 sets per month

Delivery Time : 45 days

Packaging Details : wooden box

Warranty : 24 Months

Input voltage range : 400V, 3-phase

Housing material : Metal shell

Output power : 120kW

Efficiency : >94% at rated output

Charging standard : CCS,CHAdeMO & AC

Contact Now

ARK Waterproof AC/DC Fast EV Charger 60 To 120kW 400V For Public With CE Certification

Product Introduction

ARK's EF160 DC Charger is a compact, reliable and rugged DC fast charger capable of charging all electric vehicles on the market. This all-in-one unit is sufficient to suit your site configuration and maximize your parking space without expensive site modifications. The EF160 is light and durable, easy to install and cost-effective, making it an intelligent DC quick charging option.


Product Parameters

System
Housing material Metal enclosure
Dimension (H x W x D) 1900 x 700 x 700mm
Installation method Ground mount
Cable routing Bottom inlet, top outlet wiring
Weight 355kgs
Charging standard CCS combo-1/2, CHAdeMO & AC IEC 61851
Charging outlet CHAdeMO JEVS G105, CCS Combo-2, IEC 62196 Type-2
Outlet number 3
Input
Input voltage 400Vac +/-10%, 3-phase
Input frequency 50Hz/60Hz
Power factor 0.99
Output
Rated output power CCS: 60kW, CHAdeMO: 60kW, AC: 22kW CCS: 120kW, CHAdeMO: 60kW, AC:22kW
Measuring accuracy Level 0.5
Output voltage range 150 – 1000V DC constant output @ above 300V, 400V AC
Output current range 0 - 200A DC, 32A AC 0 - 400A DC, 32A AC
Efficiency > 94% at rated output
General
Charging type Mode 4
User Interface RFID, 7” touch screen, Emergency button
Ethernet 10/100 BaseTX (TCP-IP)
Cellular LTE modem, GPRS/3G/4G
Communication CAN, PLC, PWM, OCPP 1.6 JSON
Application place Indoor/Outdoor
Working temperature -30 °C – +55 °C
Working humidity 5% – 95% non-condensation
Altitude < 2000m
Protection grade IP54
Cooling Fan cooling
Security design Over/under voltage protection, overload protection, current leakage protection, grounding protection, lightening surge protection

Waterproof 60KW To 120KW 400V Public Fast Charging StationsWaterproof 60KW To 120KW 400V Public Fast Charging Stations


Features

Intelligent DC charger, flexible location selection
Easy to install, faster return on investment
Support a wide range of grid voltages
Grow in any range of environmental conditions or temperatures
Access to real-time data
Brand, logo customization


Company Details

As a supplier of DC /AC electric car chargers, we have developed a very flexible supply chain with in-house production capabilities. We leverage these assets to design quality, highly available solutions and produce them with significant cost efficiency. As a player in the automotive industry, our technical support and end-to-end quality management meet the industry's stringent standards.

Waterproof 60KW To 120KW 400V Public Fast Charging Stations


FAQ

1. Why choose us as your preferred EV Charger supplier?

I. Professional technical team and long-term industry vision ensure that we are always in the leading position in the industry. We offer a wide selection of products: charging stations of various charging standards, internationally standardized designs, intelligent back-end services.

II. Our products have passed various application scenarios and laboratory standard tests. You can rest assured to buy our charging station products, and get our professional service support.

III. The only EV charger supplier in China that is willing and able to obtain CE and UL certification.

IV. Our team members are the first group of sales and engineers who develop and sell global standard electric vehicle DC chargers. They have rich experience in the implementation of global electric vehicle DC chargers and have the vision to lead electric vehicle charger products.

2. Is there any experience in implementing overseas charging station projects?

Yes, actually we are the pioneers in implementing overseas charger projects. Till now, we cooperate with UK power company to integrate EV charger with PV system, with US charging operator to install dozens of EV DC charger along the Freeway from LA to San Francisco, with GM automaker to provide DC fast charging service to their Bolt EV fleet and several charging projects.

3. What are the advantages of your products?

I. Telecom level product design and production.

II. Multiple charging standards support including CCS-1/2, CHAdeMO and GB/T, which means we can offer you all standards EV DC charger you want.

III. Quality comes first with wider input & output voltage range, lower voltage output range, better temperature adapted, higher protection grade, a longer technical foresight and most advanced modular design.

IV. Fast customer response, prefessional technical support and more solutions come out.

4. If we purchase your EV DC charger, how to get your after-sales support?

Under normal circumstances, we will provide comprehensive after-sales technical training, including providing written training materials, training videos or inviting customers' technical personnel to face-to-face training to help customers master parts replacement and basic maintenance work.

When encountering an urgent situation, we will also send professional technicians to provide on-site support.

5. Does the higher the charging station output power mean the faster the charging speed?

No, it doesn't. Due to the limited power of the car battery at this stage, when the output power of the DC charger reaches a certain upper limit, the larger power does not bring a faster charging speed.

However, the significance of high-power DC charger is that it can support dual connectors and simultaneously output high power to charge two electric vehicles at the same time, and in the future, when the electric vehicle battery is improved to support higher power charging, it is not necessary to invest money again to upgrade the charging station.
